- 4200K
- 36W
- 595x595x12
- Aluminum/PC

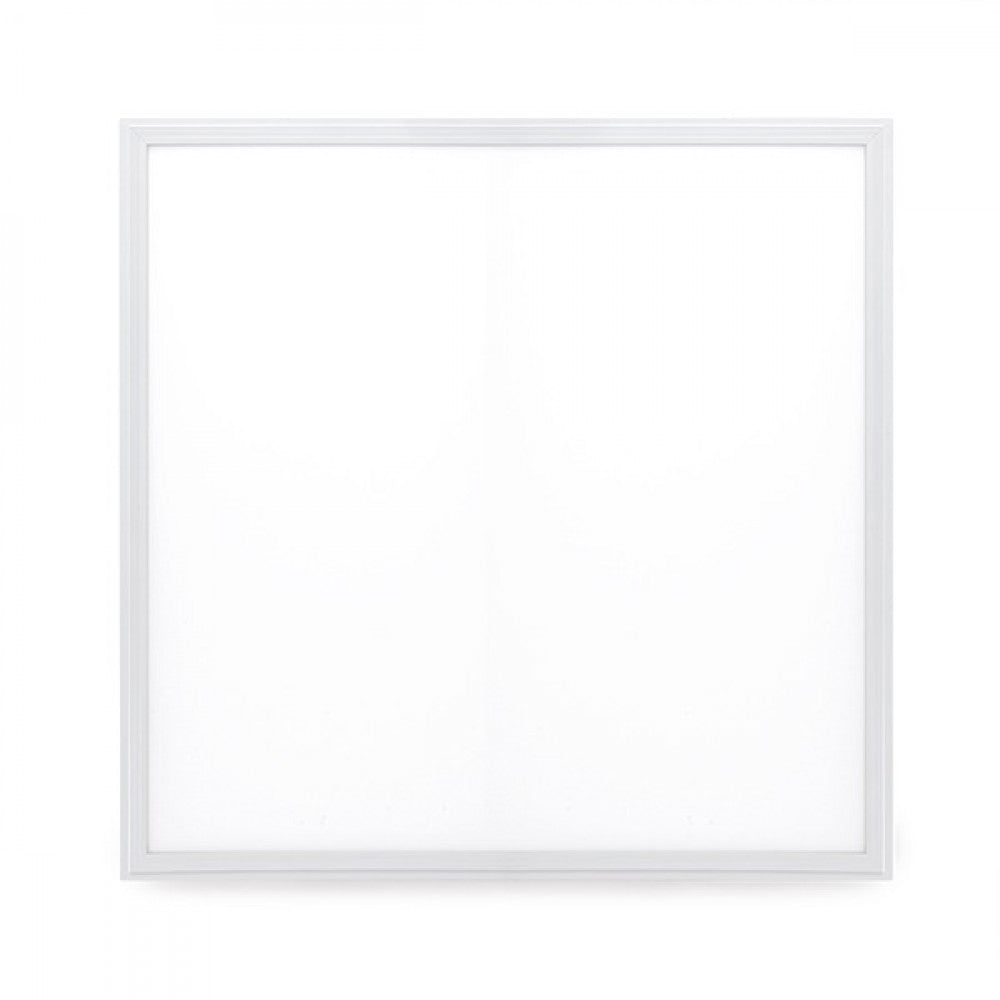

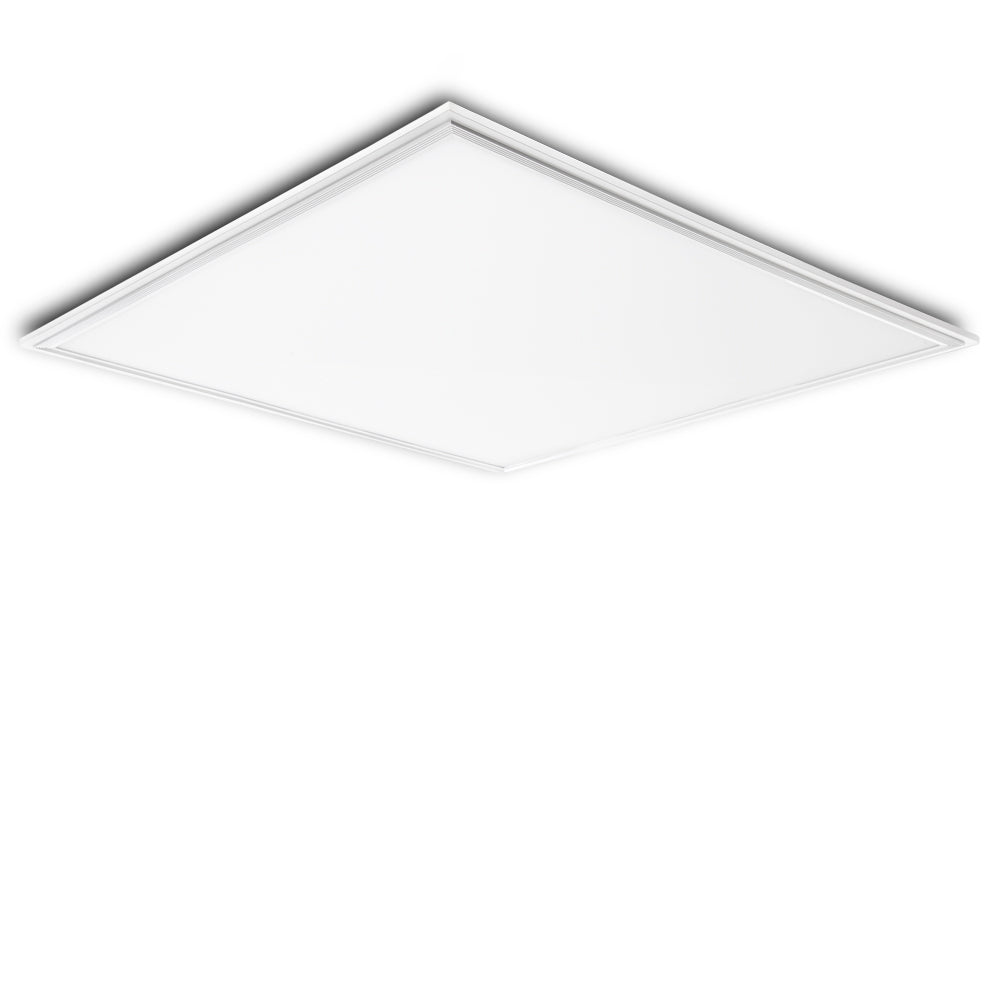

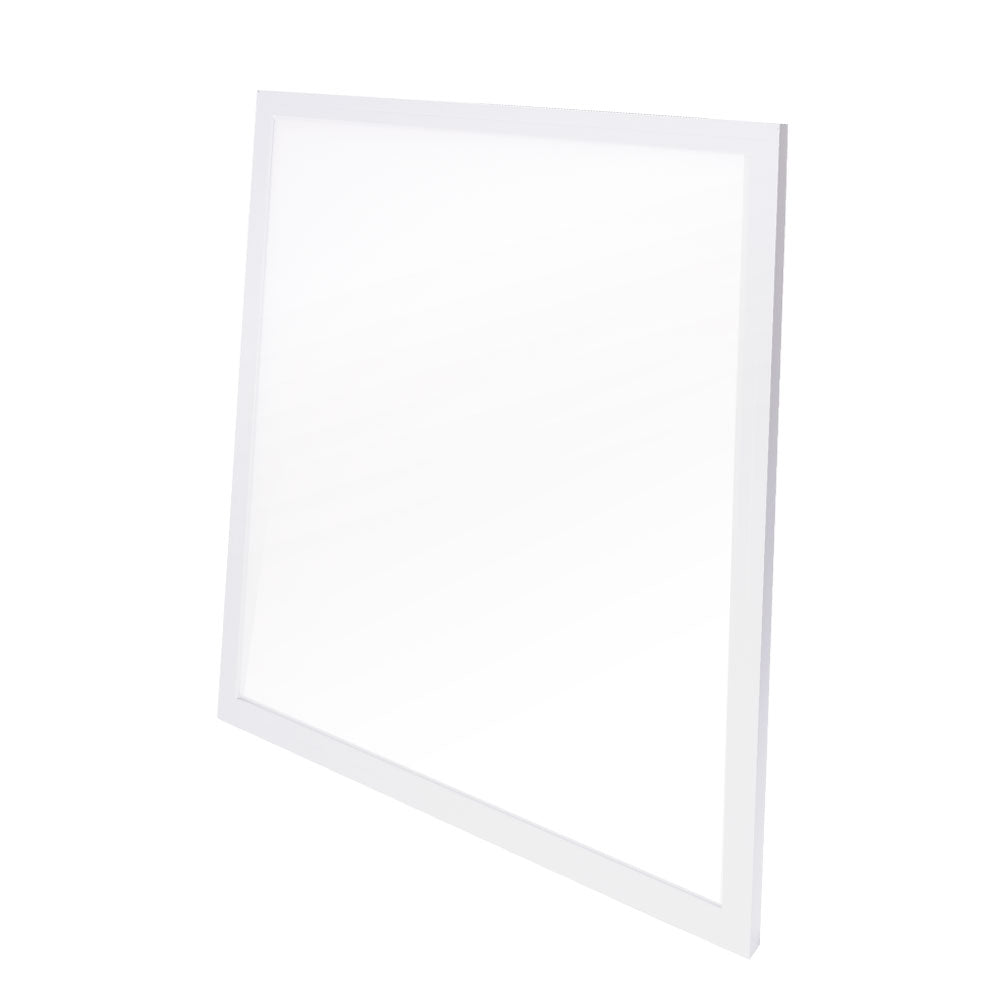

Superslim LED Panel 36W 3623Lm 4200ºK 60x60Cm UGR19 White Frame 40,000H [BX3-PANMB59559536W-W]
-
2021 -
2023
-
Technical sheet
-
Product codeBX3-PANMB59559536W-W
-

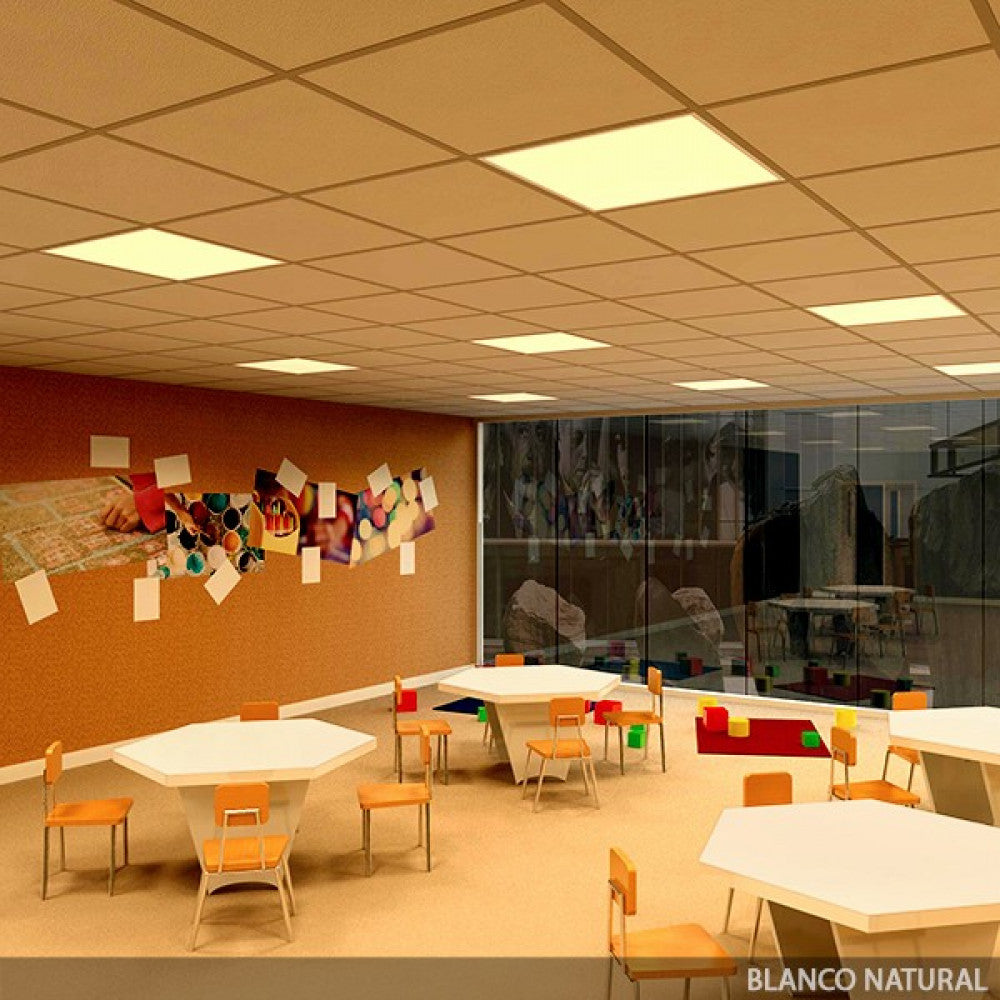

Light temperatureNatural White
-
Power (W)36.0
-
Luminosity (LM)3623
-
Measures (mm)595x595x12
-
Opening Angle (º)120
-
Luminous efficacy (LM/W)100
-
Number and type of LEDsSamsung Led
-
LED efficacy110
-
CRI80
-
Power factor (PF)0.99
-
ConstructionAluminum/PC
-
FacilityIP25
-
Strain85-265VAC
-
Isolation classII
-
Estimated life (H)40000
-
DimableNo
-
Work frequency (Hz)50/ 60
-
Start time (s)0.1
-
Energy classF
-
CertificatesCE/ROHS/TUV/ISO9001
-
BushTerminal Block
-
Temperature range (ºC)-20 +40
-
Lighting cycles100000
-
DiffuserOpal
-
Kelvin º4200
-
Energy consumption (kWh/1000h)36.0
-
Weight (gr)1650
-
Flicker0.88
-
Half -year useful life (at 3 h/day)36.52
-
Half -Year Useful Life (5 h/day)21.91
-
Half -year useful life (at 8 h/day)13.69
-
DirectionalNon-Directional
-
Single/range CCTOnly
-
Single CCT4200
-
INDEX R93
-
Minimum cri range89
-
Maximum cri range2
-
Chromaticity x0.377
-
Chromaticity and0.377
-
UGR◄19
-
High12.0
-
Long595.0
-
Broad595.0
Discharge
Technical documents
Applicable Standards
EN 55015:2013;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2013;EN 61000-4-2:2009;EN 61000-4-3:2006;EN 61000-4-4:2004;EN 61000-4-5:2006; EN 61000-4-6:2009; EN 61000-4-8:2010; EN 61000-4-11:2004;1194/2012/EU;874/2012/EU;EN 60598-1:2008;EN 60598-2-2:2012
Place orders at BX3 Light
Where can BX3 Light products be purchased?
Where can BX3 Light products be purchased?
BX3 Light works with a network of official distributors. If you are interested in purchasing our products, simply contact us and we will tell you the nearest dealer or the most appropriate according to your needs.
Can I request a sample before making a large purchase?
Can I request a sample before making a large purchase?
If possible. To study your case and evaluate the possibility of sending a sample, you need to contactour commercial team, who will inform you of the conditions and availability.
What is the delivery time of the products?
What is the delivery time of the products?
Our commitment is to offer an agile and efficient service. Therefore, theStandard delivery time is 24 hoursfor products in stock, as long as the order is placed during business hours. For special orders or products without immediate stock, our team will inform you of the estimated time.
Do you offer technical advice for lighting projects?
Do you offer technical advice for lighting projects?
Yes, at BX3 Light we offer a complete installation service. technical advice and preparation of lighting projects for professionals. Whether it is a residential, commercial, industrial or urban project, our technical team can help you select the best LED solutions, perform lighting calculations, and deliver complete documentation (technical reports, plans, Dialux simulations, etc.).
Place order
