- 2700K
- 7W
- 65
- 45x80

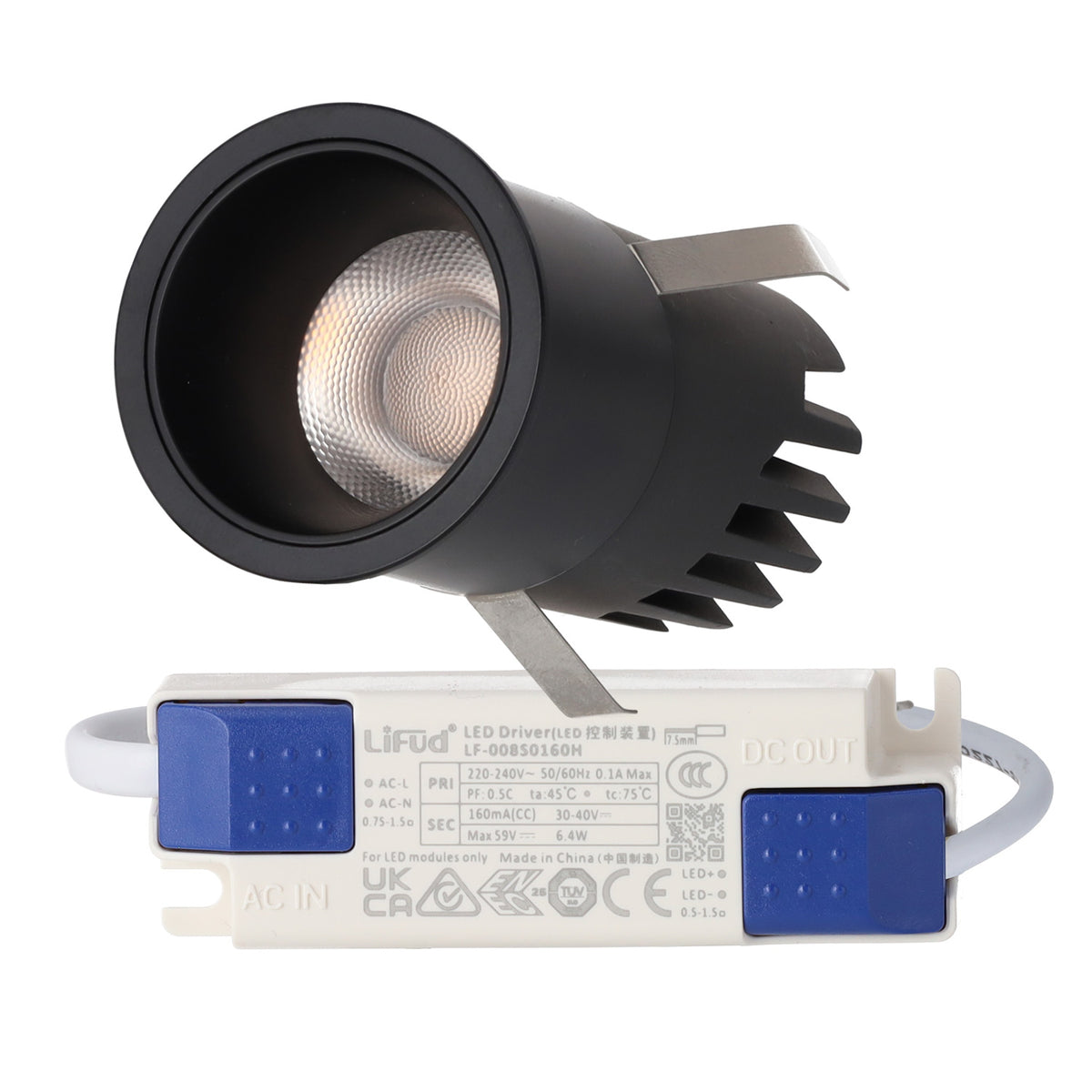

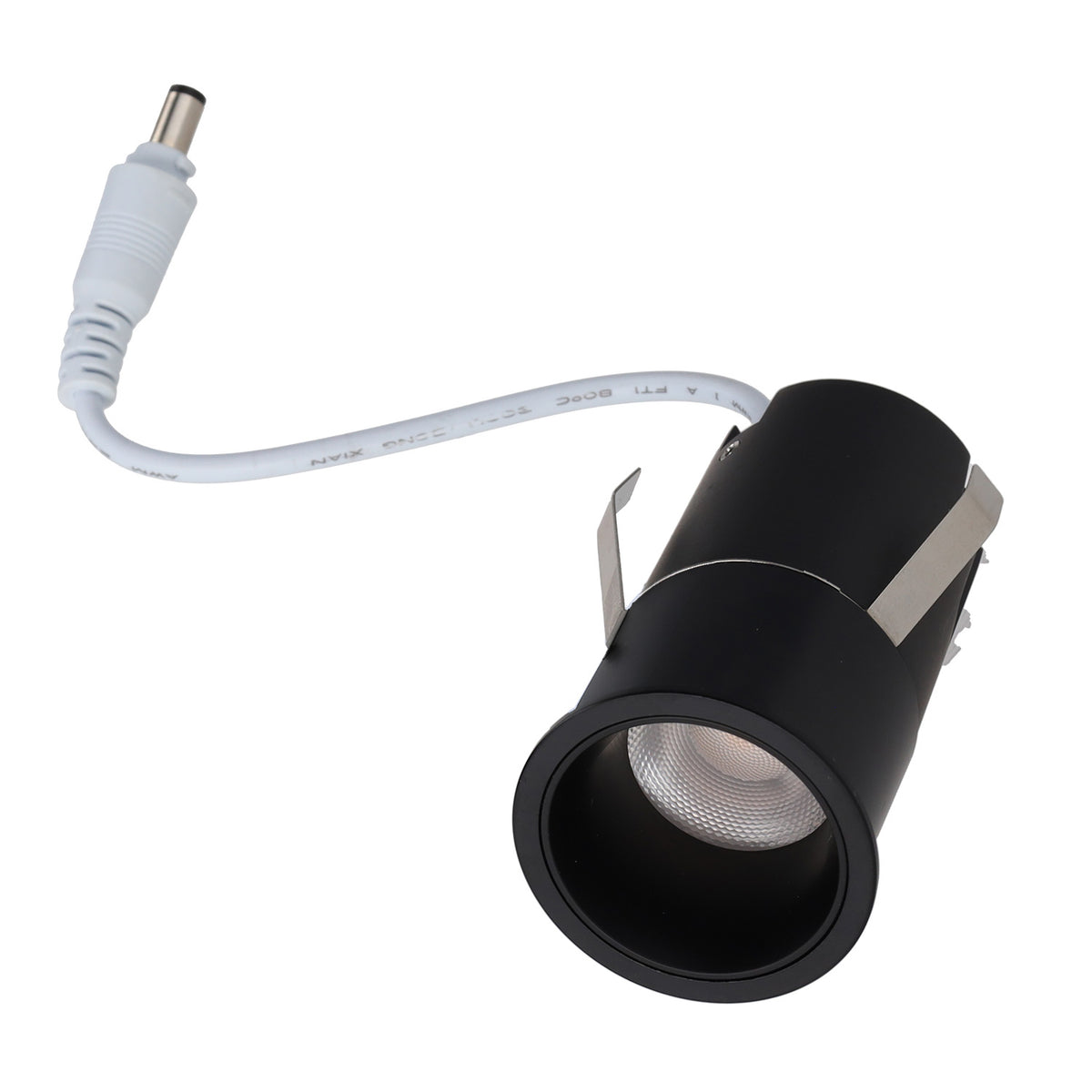

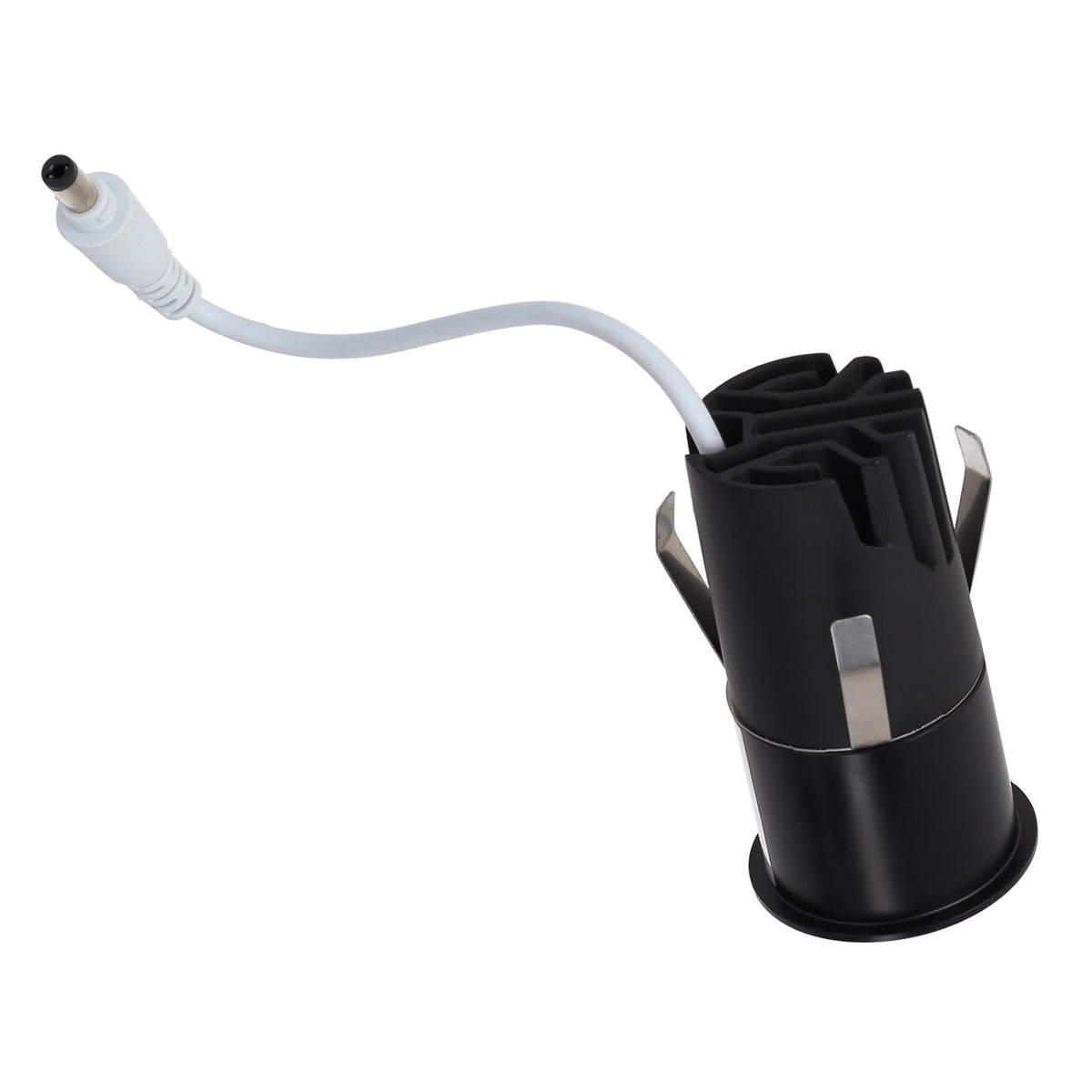

Downlight Spot LED 7W 700Lm 2700ºK Circular PRO SMD3030 50.000H
-
2021 -
2023
-
Technical sheet
-
Product codeJW-7W-WW
-
Light temperatureWarm White
-
Power (W)7.0
-
Luminosity (LM)700
-
Measures (mm)45x80
-
Opening Angle (º)38
-
Luminous efficacy (LM/W)100
-
LED efficacy110
-
CRI90
-
Power factor (PF)0.99
-
ConstructionAluminum/ PC
-
FacilityIP20
-
Strain220-240V AC
-
Isolation classII
-
Estimated life (H)50000
-
DimableNo
-
Equivalence (W)25
-
Work frequency (Hz)50/ 60
-
Start time (s)0.1
-
Energy classG
-
CertificatesCE/ROHS/ENEC/ISO9001
-
BushTerminal Block
-
Temperature range (ºC)-20 +40
-
Lighting cycles100000
-
DiffuserMicroprismatic
-
Kelvin º2700
-
Energy consumption (kWh/1000h)7.0
-
Flicker0.89
-
Half -year useful life (at 3 h/day)45.66
-
Half -Year Useful Life (5 h/day)27.39
-
Half -year useful life (at 8 h/day)17.12
-
DirectionalNon-Directional
-
Single/range CCTOnly
-
Single CCT2700
-
INDEX R915
-
Minimum cri range85
-
Maximum cri range22
-
Chromaticity x0.304
-
Chromaticity and0.312
-
Roof cut (mm)52
-
UGR◄19
-
FinishNegro
-
Diameter65
-
Long70.0
-
Broad50.0
Discharge
Technical documents
Applicable Standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001
