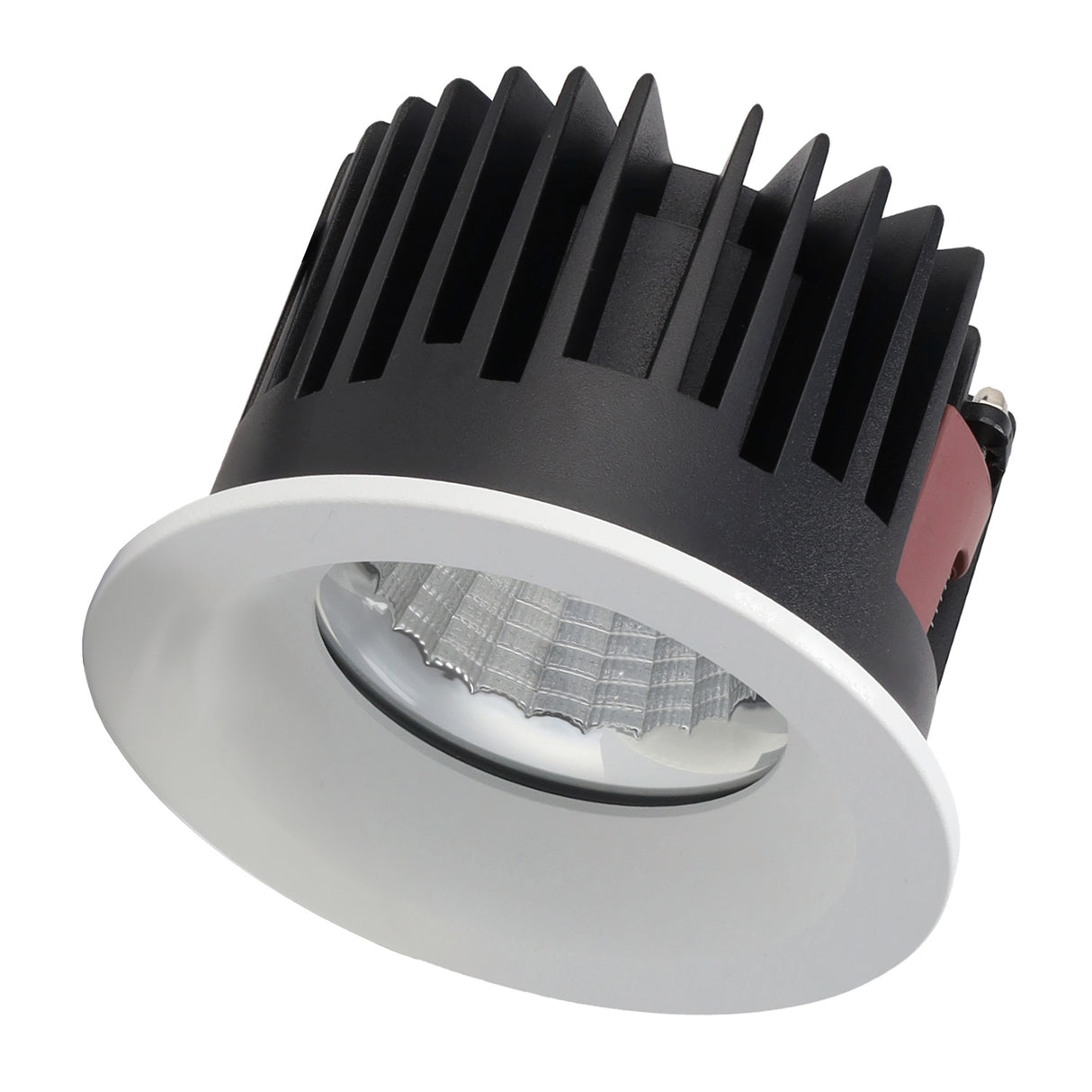

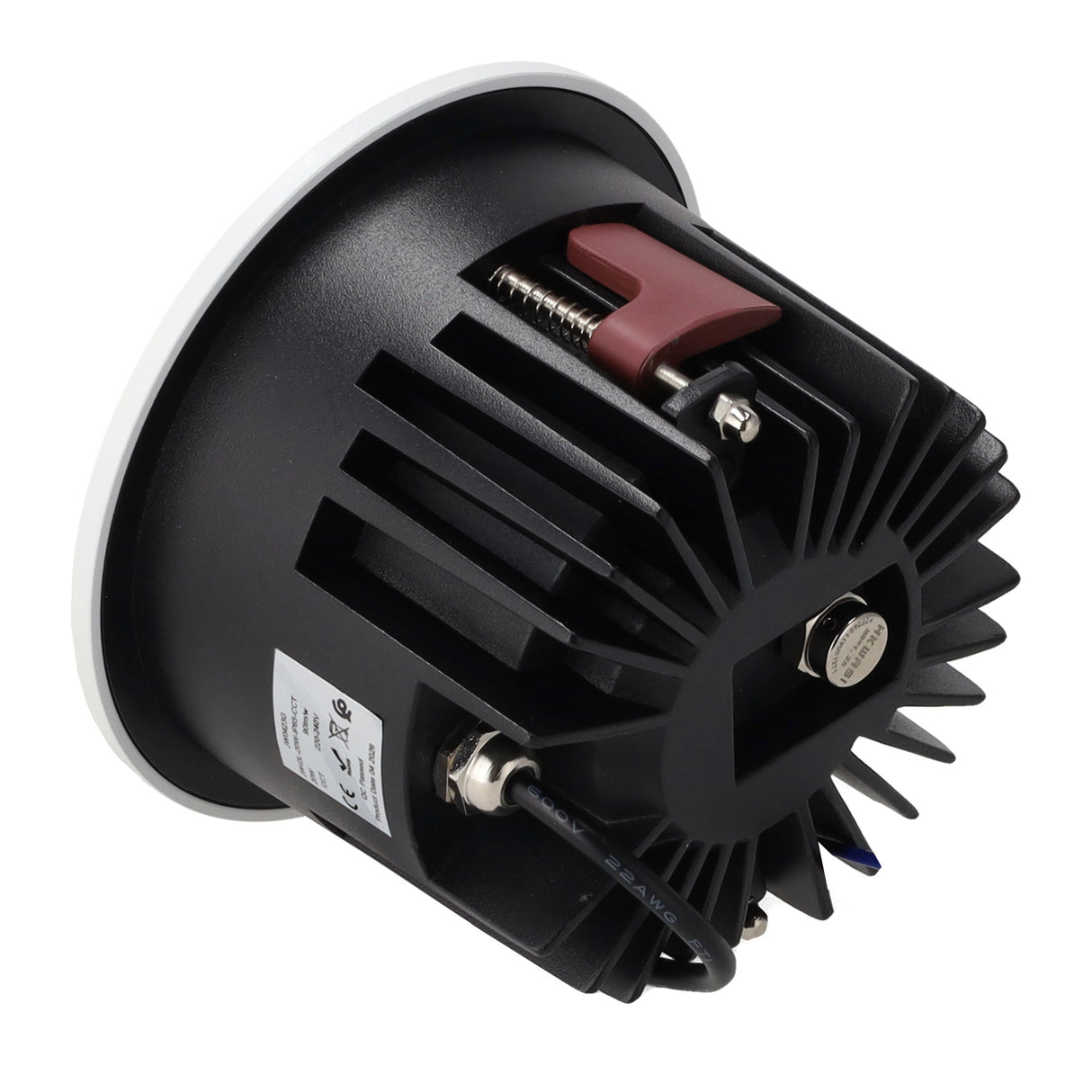

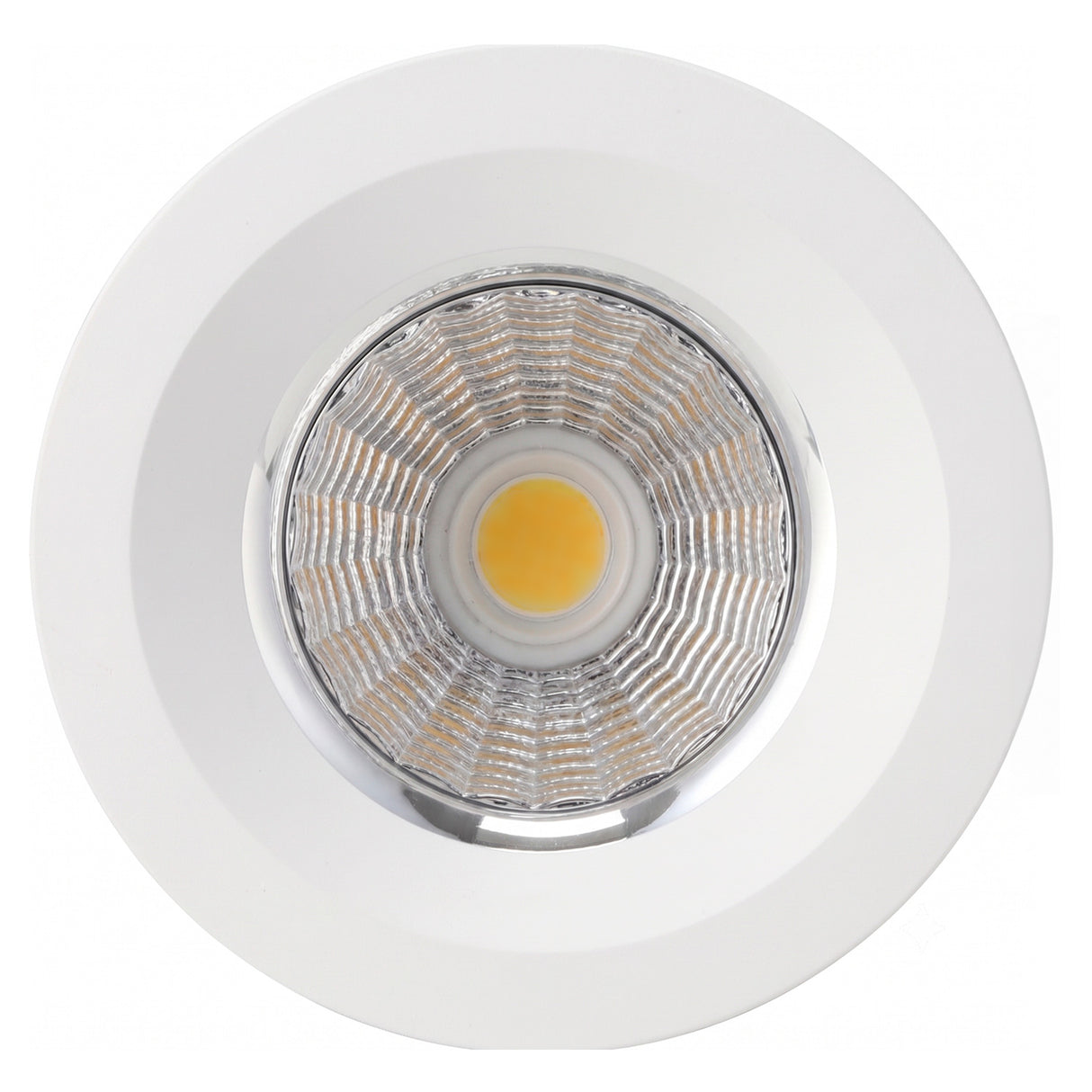

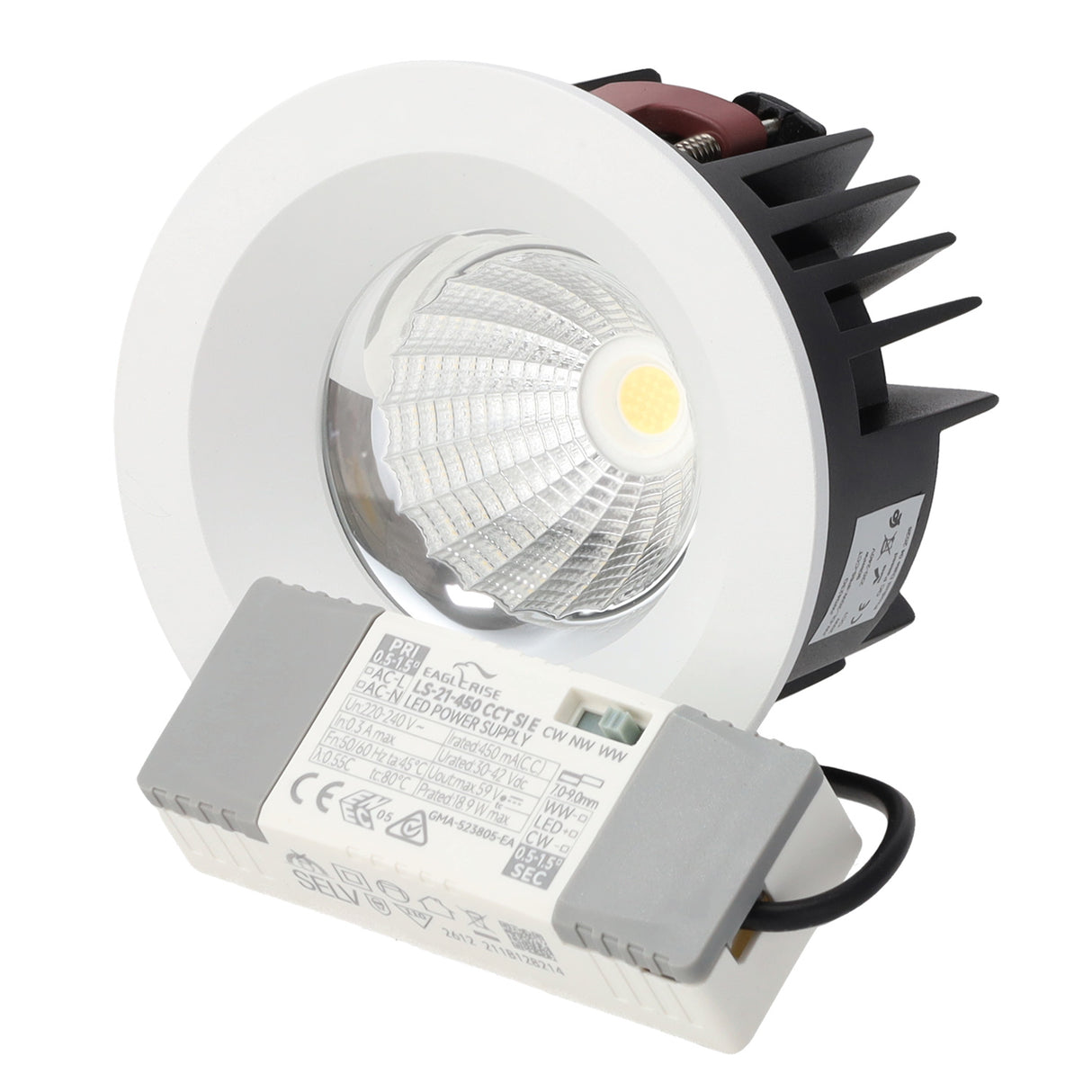

20W LED Downlight IP65 90lm/W 95mm Cutout CCT (Adjustable Light Color)
-
2021 -
2023
-
Technical sheet
-
Product codeJW-DL-20W-IP65-CCT
-
Light temperatureCCT
-
Power (W)20.0
-
Luminosity (LM)1800
-
Measures (mm)110x74
-
Opening Angle (º)38
-
Luminous efficacy (LM/W)90
-
LED efficacy100
-
CRI90
-
Power factor (PF)0.99
-
ConstructionAlu/PC
-
FacilityIP65
-
Strain85-265VAC
-
Isolation classII
-
Estimated life (H)100000
-
Work frequency (Hz)50/60
-
Start time (s)0.1
-
Energy classF
-
CertificatesCE/ROHSISO9001
-
Temperature range (ºC)-20+40
-
Lighting cycles100000
-
Energy consumption (kWh/1000h)20.0
-
Weight (gr)400
-
Half -year useful life (at 3 h/day)91.32
-
Half -Year Useful Life (5 h/day)54.79
-
Half -year useful life (at 8 h/day)34.24
-
Minimum cri range80
-
Maximum cri range95
-
UGR<17
-
Minimum CCT range2700
-
Maximum cri range6000
-
IK Protection IndexIK07
-
Diameter110
-
Long74.0
Discharge
Technical documents
