- 2700K
- 6W
- IK08
- Ø70

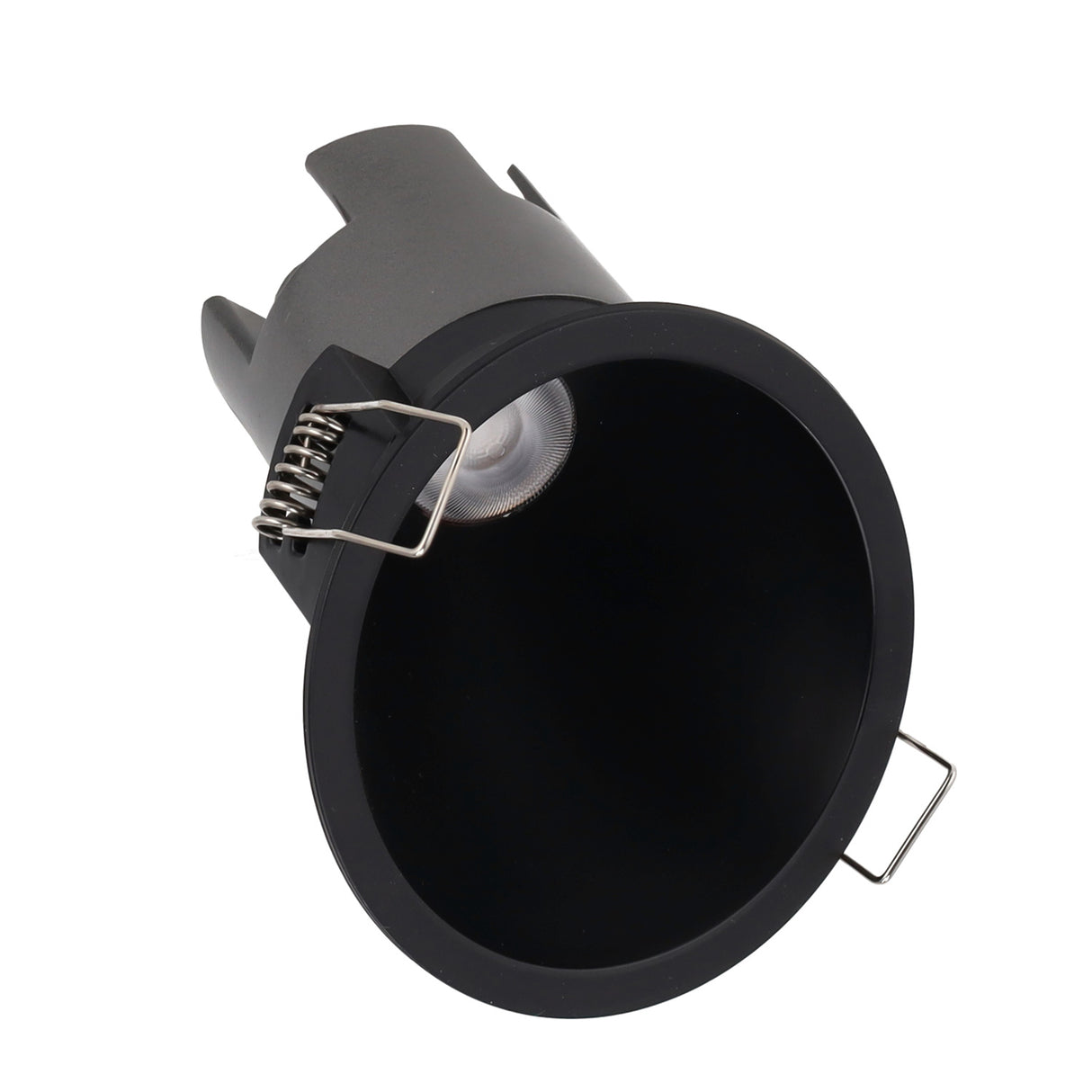

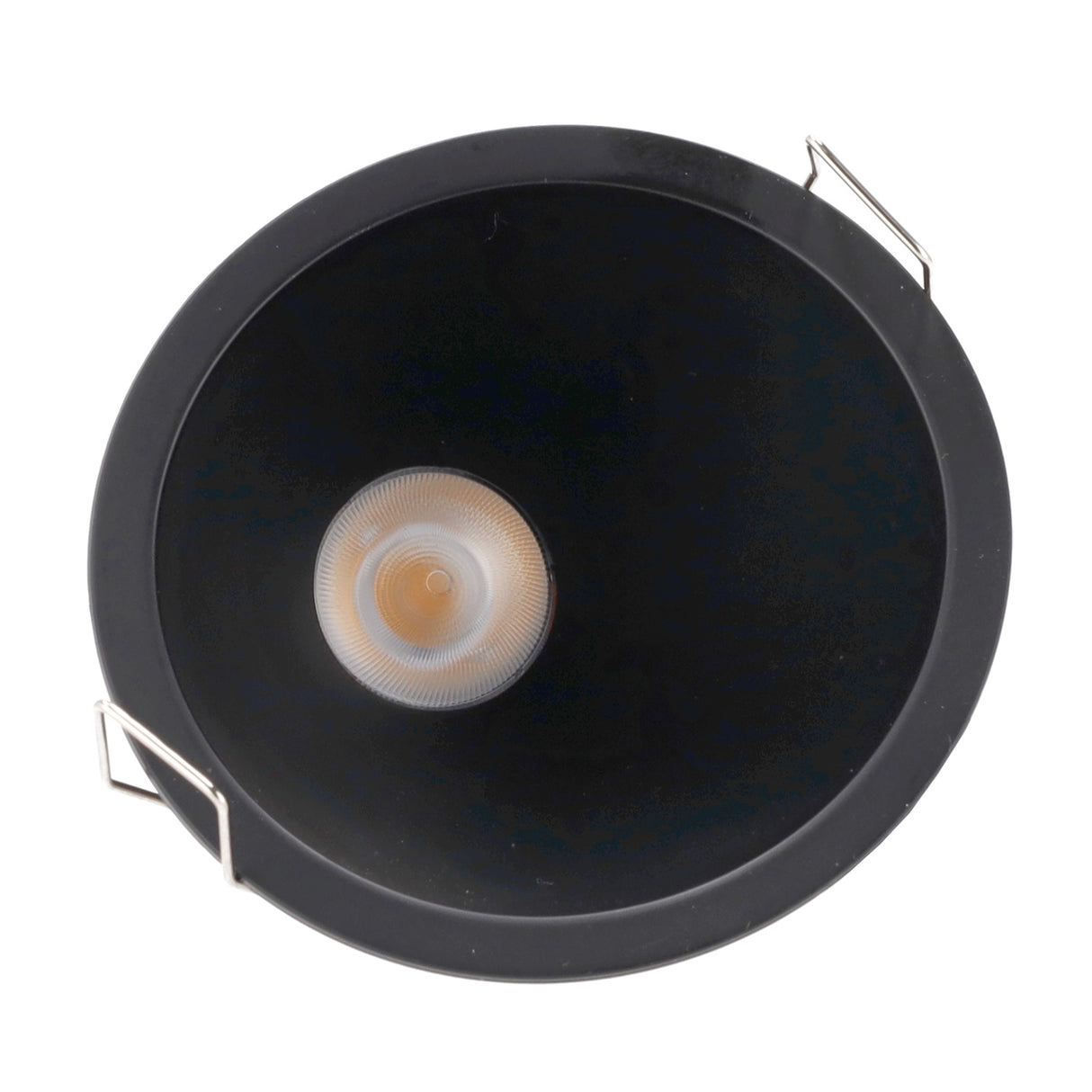

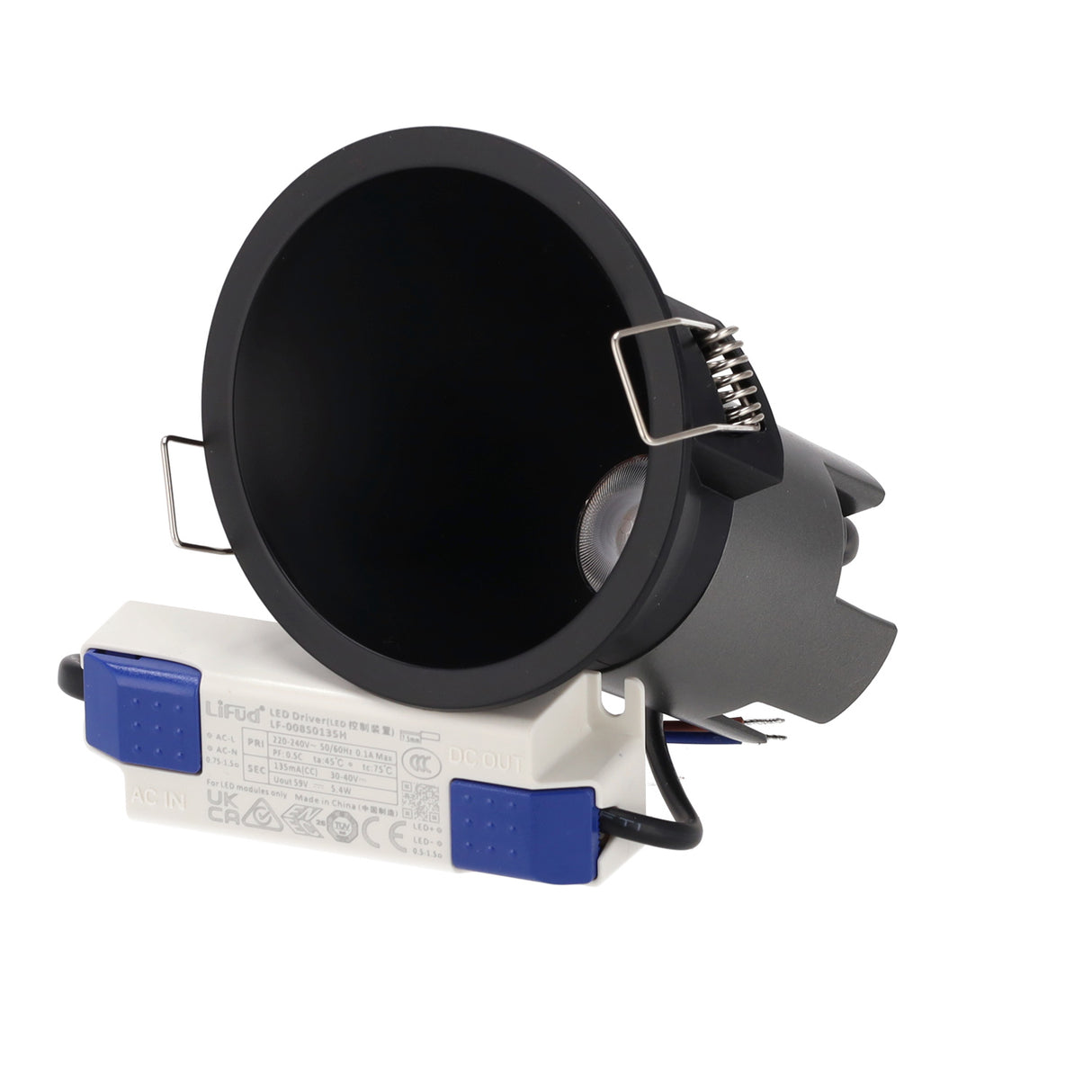

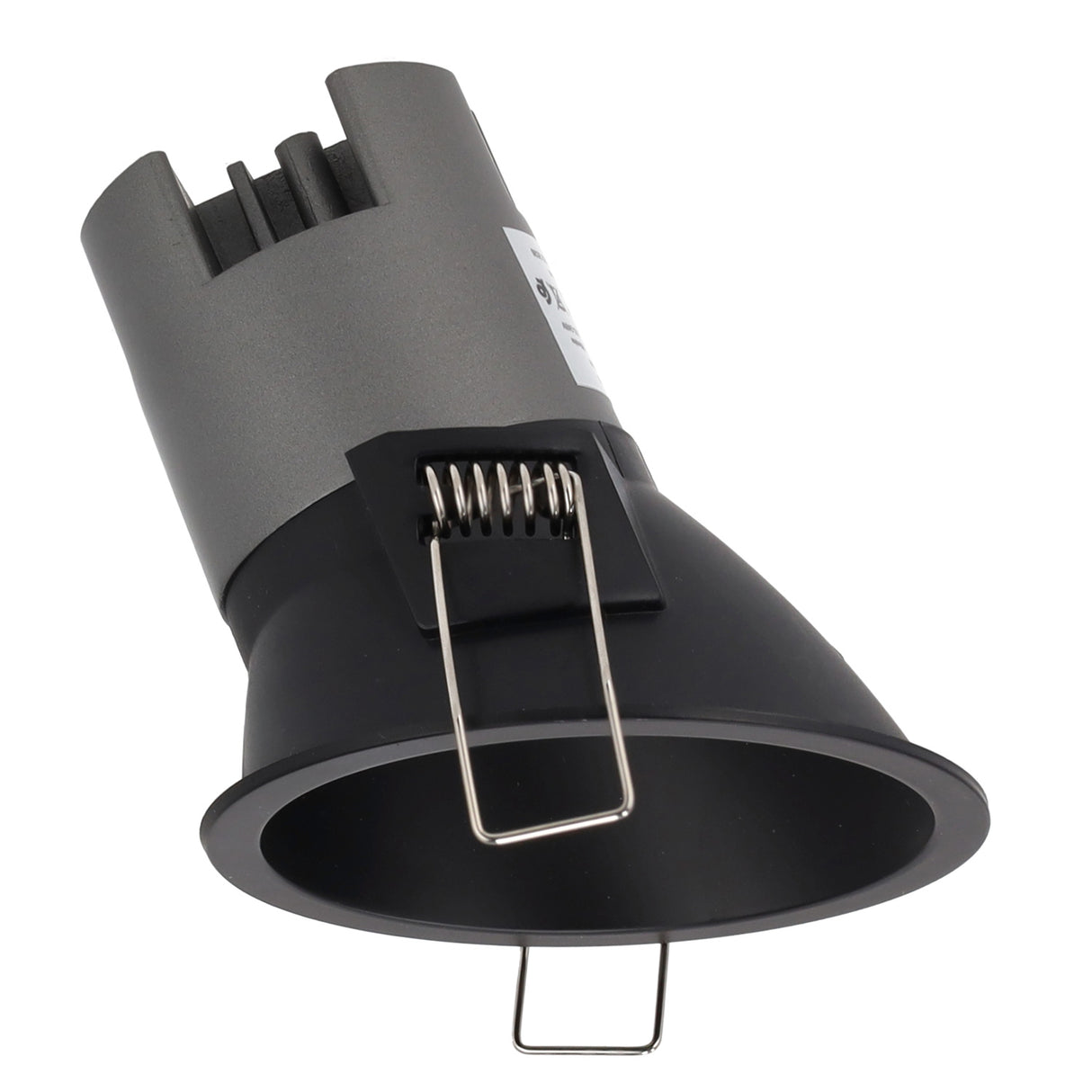

6W LED downlight 90Lm/W UGR<15 CRI>95 2700ºK 50,000H
-
2021 -
2023
-
Technical sheet
-
Product codeJW-6W-B-WW
-
Light temperatureWW
-
Power (W)6.0
-
Luminosity (LM)800
-
Measures (mm)Ø70x77
-
Opening Angle (º)36
-
Luminous efficacy (LM/W)133
-
LED efficacy140
-
CRI95
-
Power factor (PF)0.99
-
ConstructionAlu/PC
-
FacilityIP20
-
Strain85-265VAC
-
Isolation classII
-
Estimated life (H)50000
-
Equivalence (W)90
-
Work frequency (Hz)50/60
-
Start time (s)0.1
-
Energy classE
-
CertificatesCE/ROHS/ISO9001
-
Temperature range (ºC)-20+40
-
Lighting cycles100000
-
Kelvin º2700
-
Energy consumption (kWh/1000h)6.0
-
Weight (gr)200
-
Flicker0.8
-
Half -year useful life (at 3 h/day)45.66
-
Half -Year Useful Life (5 h/day)27.39
-
Half -year useful life (at 8 h/day)17.12
-
Single CCT2700
-
INDEX R91
-
Minimum cri range80
-
Maximum cri range95
-
Roof cut (mm)Ø65
-
UGR<15
-
IK Protection IndexIK08
-
High77.0
-
DiameterØ70
Discharge
Technical documents
Applicable Standards
EN 55015:2009;EN 61547:2009:EN 61000-3-2:2006;EN 61000-3-3:2008;EN 60598-2-2:2012;EN 60598-1:2009;EN 1122B:2001
